Waterproof Materi Shower Floor Bathroom Tray 600mm~2000mm With Round Linear Drain

  • 100 - 999 Pieces
    $27.00
  • >=1000 Pieces
    $25.00
Tray Material:
xps foam coated with fiberglass mesh and waterproof cement
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 500 501 - 5000 >5000
Est. Time(days) 15 30 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$1.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
NONE
After-sale Service:
Online Technical Support
Project Solution Capability:
Others
Place of Origin:
Zhejiang, China
Brand Name:
TYCO/OEM/ODM
Model Number:
ST9090-001
Tray Shape:
square/round/ractangular/irregular shape
Thermal conductivity:
0.028~0.036W/mk
Compressive strength:
about 450~700Kpa
Appearance Style::
square/round/ractangular/irregular shape
Apparent Density::
35~40
Installation:
easy installation
Function:
waterproof, insulation, soundproof
Water Absorption:
less than 0.5%
Color:
blue/grey or customized
Package:
1pcs/box, 10pcs/ctn
Item Name:
Schluter Quality Tiled Waterproof Material Polystyrene Shower Tray
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month complete portable Building Greenhourse shower base trays
Packaging & Delivery
Packaging Details
complete portable Building Greenhourse shower base trays packed one pcs one box, 10pcs per carton
Port
Ningbo/Shanghai
Lead Time :
Quantity(Pieces) 1 - 500 501 - 5000 >5000
Est. Time(days) 15 30 To be negotiated
Who We Are
Product Description

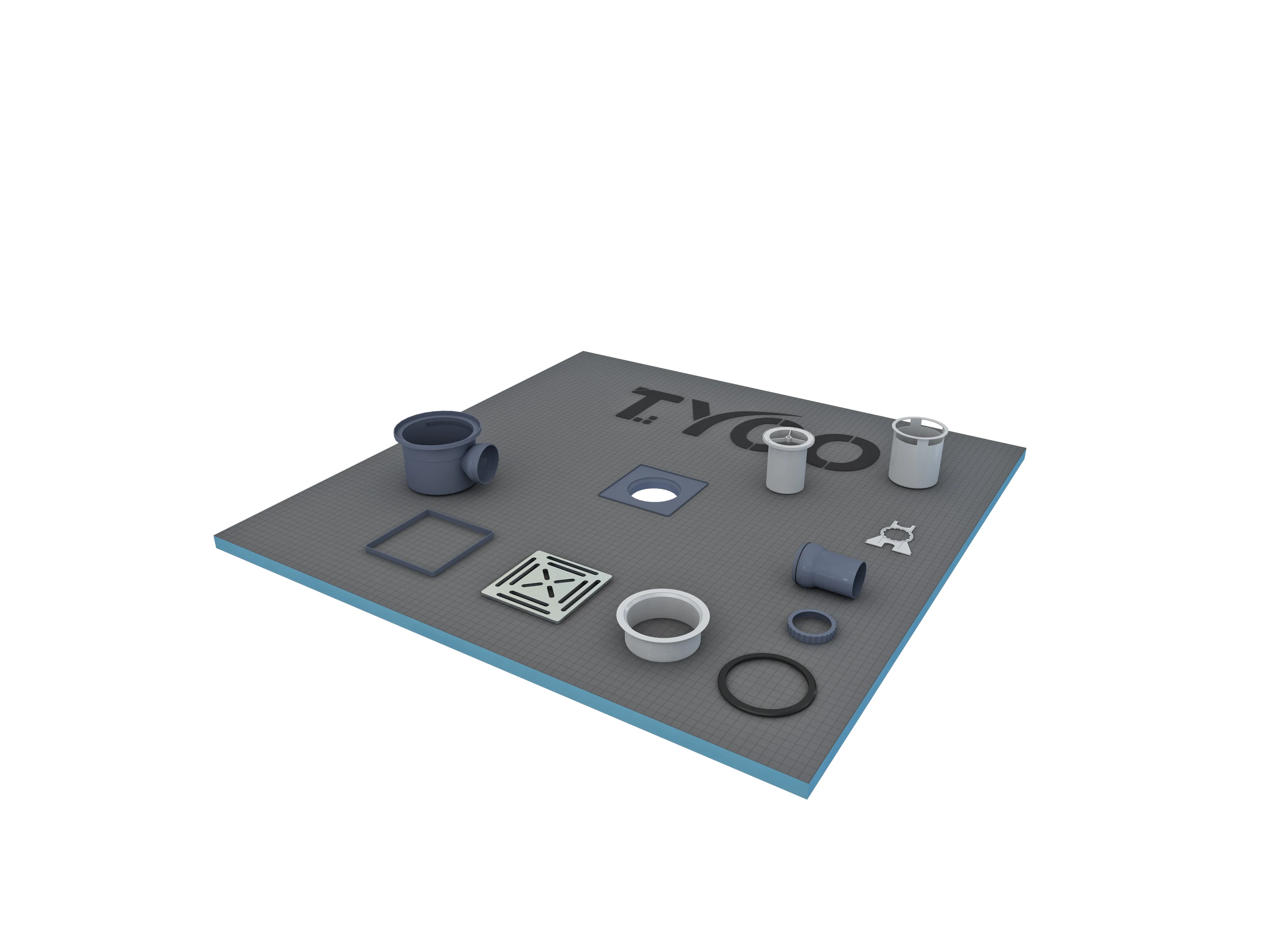

The XPS shower tray is specially designed for the shower area. with min 2%drain angel, tiles can be fit according to the slope easily. Furthermore, It is easily to be cut into any size or shape to suit the shower area. Since it is ready for tile, the shower floor can be easily match surrounding decoration. And the shower tray are available in a number of sizes. Also it could be customized to for the drain position and match with the drains as required.
Min 2% drain angle Can be finished with tiles to match surrounding decoration Can be cut to any size Waterproof, excellent for shower area. Excellent for heat and sound insulation
Technical Data
TYCO XPS Shower Niche Raw Material vs Cheap Raw Material
XPS
Density of core board
Kg/m3
35~38
Thermal conductivity,90 days, 10。C
W/mK
0.028~0.03
Compressive strength at 10% deflection or yield,(vertical)
Kpa
450~700
Tensile strength
Kpa
>=300
Water absorption
vol-%
<=1%
Capillarity
nil
nil
Coefficient of linear thermal expansion
mm/mk
0.07
Temperature limits
。C
-50。C,+75。C
Sizes & Packing
Item No.
Dimension
Drain Position
STB8080
800*800*20/40mm
Central or Offset
STB9090
900*900*20/40mm
Central or Offset
STB100100
1000*1000*20/40mm
Central or Offset
STB12090
1200*900*20/40mm
Central or Offset
STB14090
1400*900*20/40mm
Central or Offset
STB15090
1500*900*20/40mm
Central or Offset
STB18090
1800*900*20/40mm
Central or Offset
STB120120
1200*1200*20/40mm
Central or Offset
Other sizes and design also available!

Packing: 1pcs/ctn, 10pcs/ctn

Packing: no carton, by pallet directly
Application
Installation Instructions
Certificate
Welcome to click pictures to see more our hot selling products.

Underfloor Heating Panel

1. Many type for different floors or budget2. OEM size for different project
3. Same to humans and environment
4. Good thermal transfer performance
5. Quality approved by CE/SINTEF/REACH/SGS

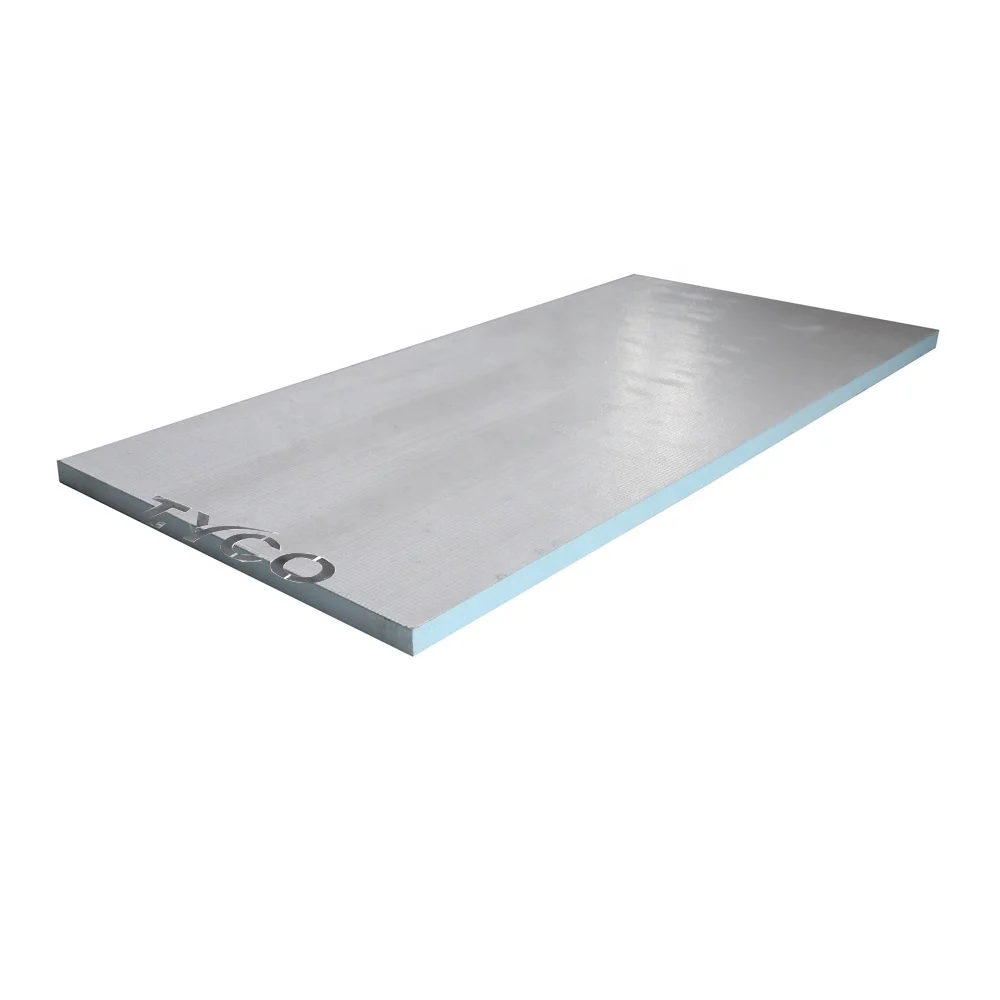

XPS Foam Board

1. Various size, like 2400x1200mm
2. Different color
3. Thickness from 6~100mm
4. OEM&ODM support
5. Quality approved by CE/SINTEF/REACH/SGS

XPS Tile Backer Board

1. The only one factory in China produce by machine2. Stable high quality
3. Waterproof/fireproof/soundproof
4. OEM&ODM support
5. Quality approved by CE/SINTEF/REACH/SGS

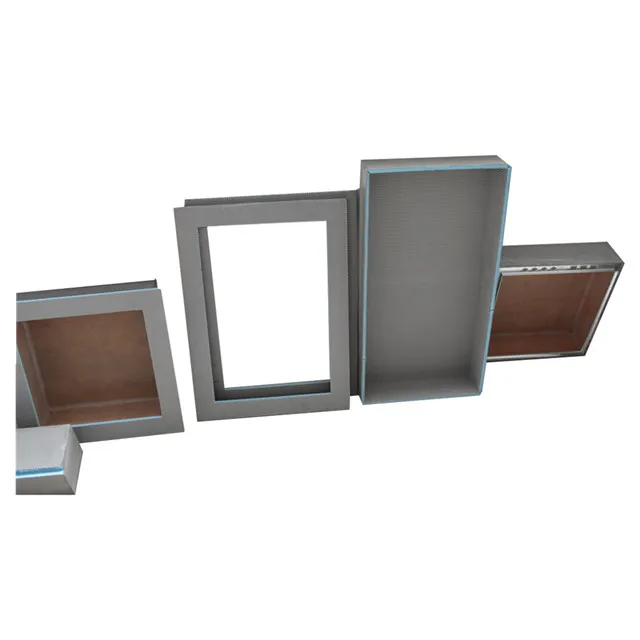

XPS Shower Niche

1. 2% slope to make sure water flow well2. OEM&ODM support
3. Package in flat pcs or construted niche both available
4. With or without shelf
5. Quality approved by CE/SINTEF/REACH/SGS
FAQ

Q: Are you manufacturer or trading company?

A: We are manufacturer over 20years and we export to whole world over 10years.

Q: How does your factory control quality?
A: We do quality control from the very beginning of raw material to the end of production. Each batch of products will be tested with caution before packing and delivery. We have testing equipment and staff in our QC department.

Q: Your shower tray size is not availbale for my purpose, can you do specific size for me?
A: Sure, OEM and ODM is supportive, we can make specific size and design to fit your floor very well.


Q: Can I use my own shower drains?

A: Yes, our drain outlet pipe diamter is 40/50mm, if this is not fine for you, we can open drain hole according to your need.

Q: Can I get samples before ordering?
A: Yes, small size sample is free, and express fee need to be bear in your side.

Q: How about MOQ and delivery?
A: Here is no MOQ if we have enough stock of standard board.
Delivery time will be 15~20days for LCL order(less than full containerload), and 30days for FCL order(full of container load).


Q: Do you support to door delivery service?
A: Yes, we can handle whole delivery service to your door, and first please notice us if you have personal or company tile which can be used for customs clearance after goods arrive destination seaport.

Welcome to send us inquiry to get more help!
